Apache ECharts — Dashboard Analytics Research¶

Project: Forma3D.Connect
Version: 1.0
Date: February 13, 2026
Status: Implemented → ADR-050

Executive Summary¶

This document evaluates Apache ECharts as the charting library for building an analytics dashboard in Forma3D.Connect. The current dashboard shows only basic stat cards and lists — no visual charts or trend analysis. Adding pie/donut charts for orders, print jobs, and shipments (grouped by status) along with revenue breakdowns and trend lines would give operators immediate visual insight into their 3D print farm operations.

Recommendation¶

Adopt Apache ECharts via echarts-for-react as the charting library. It offers the richest pie chart variants (donut, rose, nested, sunburst), excellent TypeScript support, and professional label formatting — all of which align with the analytics requirements below. The bundle size trade-off is acceptable when using on-demand imports (~150 KB gzipped vs ~320 KB full).

Table of Contents¶

1. Current State
2. Library Comparison
3. ECharts Technical Assessment
4. Proposed Dashboard Metrics
5. Chart Specifications
6. Mockups
7. Implementation Plan
8. Backend API Requirements
9. Risks & Mitigations
10. Decision

1. Current State¶

The current dashboard (apps/web/src/pages/dashboard.tsx) provides:

What's missing:

• No visual charts or graphs
• No time-based filtering (today / week / month / all-time)
• No revenue or monetary aggregations
• No trend analysis (is the business growing?)
• No print success/failure rate visualization
• No shipping pipeline visibility

2. Library Comparison¶

Verdict: ECharts wins on chart variety, label richness, and built-in dark theme support — critical for our admin dashboard. The bundle size cost is manageable with on-demand imports. Recharts has broader React adoption but lacks the pie chart variants we need.

3. ECharts Technical Assessment¶

3.1 Packages Required¶

echarts           ^5.6.0    # Core library
echarts-for-react ^3.0.6    # React wrapper (3 KB gzipped)

3.2 React 19 Compatibility¶

echarts-for-react@3.0.6 declares peer dependencies for React ^15 || ^16 || ^17. It works with React 19 without issues — only a peer dependency warning. Fix with pnpm config:

{
  "pnpm": {
    "peerDependencyRules": {
      "allowedVersions": {
        "echarts-for-react>react": "19",
        "echarts-for-react>react-dom": "19"
      }
    }
  }
}

3.3 Tree-Shaking (On-Demand Imports)¶

Full import of ECharts adds ~320 KB gzipped. Using on-demand imports reduces this to ~150 KB:

// libs/ui/src/charts/echarts-setup.ts
import * as echarts from 'echarts/core';
import { PieChart, BarChart, LineChart, GaugeChart } from 'echarts/charts';
import {
  TitleComponent,
  TooltipComponent,
  LegendComponent,
  GridComponent,
} from 'echarts/components';
import { CanvasRenderer } from 'echarts/renderers';

echarts.use([
  PieChart,
  BarChart,
  LineChart,
  GaugeChart,
  TitleComponent,
  TooltipComponent,
  LegendComponent,
  GridComponent,
  CanvasRenderer,
]);

export { echarts };

// Usage in components
import ReactEChartsCore from 'echarts-for-react/lib/core';
import { echarts } from '@forma3d/ui/charts/echarts-setup';

<ReactEChartsCore echarts={echarts} option={chartOption} />

3.4 Dark Theme Integration¶

ECharts ships with a built-in dark theme. We can also create a custom Forma3D theme that matches our CSS variables:

echarts.registerTheme('forma3d-dark', {
  backgroundColor: 'transparent',
  textStyle: { color: 'var(--color-text-primary)' },
  // ... custom colors matching our design system
});

4. Proposed Dashboard Metrics¶

4.1 Order Metrics¶

4.2 Print Job Metrics¶

4.3 Shipment Metrics¶

4.4 Business Overview Metrics¶

5. Chart Specifications¶

5.1 Orders by Status — Donut Chart¶

The primary chart. Shows the distribution of orders across all 6 statuses for the selected time period.

Data structure:

interface OrderStatusMetric {
  status: OrderStatus;
  count: number;
  percentage: number;
  totalValue: number; // EUR
}

interface OrderStatusChartData {
  period: 'today' | 'week' | 'month' | 'all';
  totalOrders: number;
  totalRevenue: number;
  avgOrderValue: number;
  statuses: OrderStatusMetric[];
}

ECharts config (simplified):

const option: EChartsOption = {
  tooltip: {
    trigger: 'item',
    formatter: ({ data }) =>
      `${data.name}<br/>` +
      `${data.value} orders (${data.percentage}%)<br/>` +
      `€${data.totalValue.toLocaleString()}`,
  },
  legend: { orient: 'vertical', left: 'left' },
  series: [
    {
      type: 'pie',
      radius: ['40%', '70%'], // Donut
      avoidLabelOverlap: true,
      label: {
        formatter: '{b}\n{c} orders ({d}%)\n€{totalValue}',
        position: 'outside',
      },
      labelLine: { show: true },
      data: [
        { value: 12, name: 'Pending', itemStyle: { color: '#9CA3AF' } },
        { value: 24, name: 'Processing', itemStyle: { color: '#3B82F6' } },
        { value: 8, name: 'Partial', itemStyle: { color: '#F59E0B' } },
        { value: 28, name: 'Completed', itemStyle: { color: '#10B981' } },
        { value: 4, name: 'Failed', itemStyle: { color: '#EF4444' } },
        { value: 4, name: 'Cancelled', itemStyle: { color: '#6B7280' } },
      ],
    },
  ],
};

Color mapping (matching existing constants):

5.2 Print Jobs by Status — Donut Chart¶

Same donut pattern, with print-job-specific statuses and colors.

Color mapping:

Center label: Total jobs count + average duration per job.

5.3 Shipments by Status — Donut Chart¶

Seven statuses representing the full shipping pipeline.

Color mapping:

Center label: Total shipments + delivered count.

5.4 Revenue Breakdown — Nested Donut / Sunburst¶

A nested chart with two rings:

• Inner ring: Revenue by order status (Completed, Processing, Pending)
• Outer ring: Revenue by product SKU within each status

This leverages ECharts' unique nested pie capability — not available in Recharts or Chart.js.

5.5 Print Success Rate — Gauge Chart¶

A semi-circle gauge showing the success rate percentage (COMPLETED / (COMPLETED + FAILED)) with:

• Green zone: 90–100%
• Yellow zone: 75–90%
• Red zone: < 75%

5.6 Order Volume Trend — Line Chart¶

A time-series line chart showing daily order count. Supports hover tooltip with date and count.

5.7 Revenue Trend — Bar Chart¶

A bar chart showing daily/weekly revenue in EUR. Each bar is colored by the dominant order status for that day.

6. Mockups¶

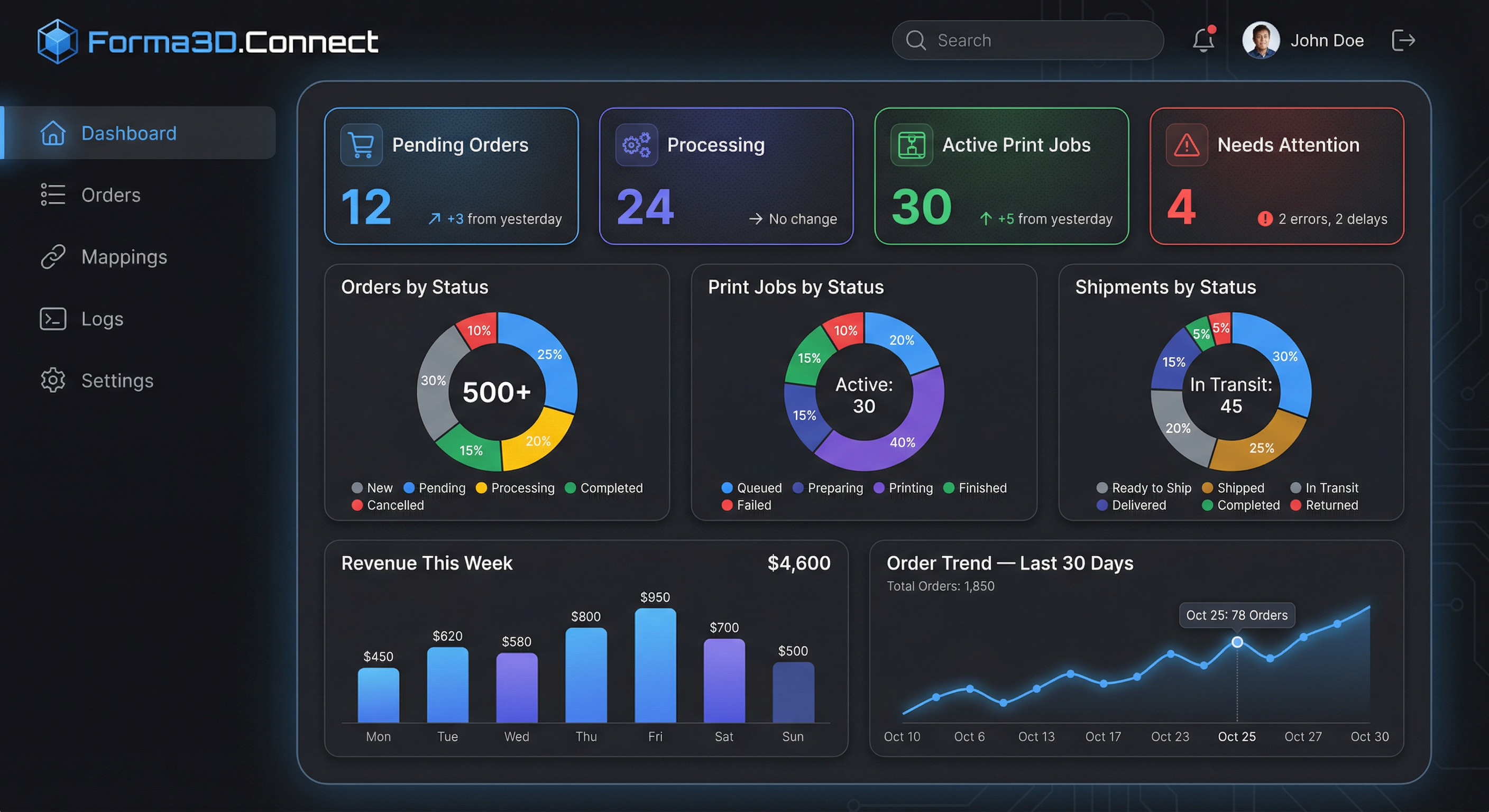

6.1 Full Dashboard Layout¶

The proposed dashboard layout with stat cards, three donut charts, revenue bar chart, and order trend line:

Layout structure:

• Row 1: 4 enhanced KPI stat cards (replacing existing simple stat cards with trend indicators like "+3 from yesterday")
• Row 2: 3 donut charts side-by-side (Orders | Print Jobs | Shipments) with a single shared period dropdown (Today / Last Week / Last Month / All Time)
• Row 3: Revenue bar chart — "This Week" (left) + Order trend line — "Last 30 Days" (right)
• Row 4: Existing Recent Orders + Active Print Jobs lists (moved down, untouched)

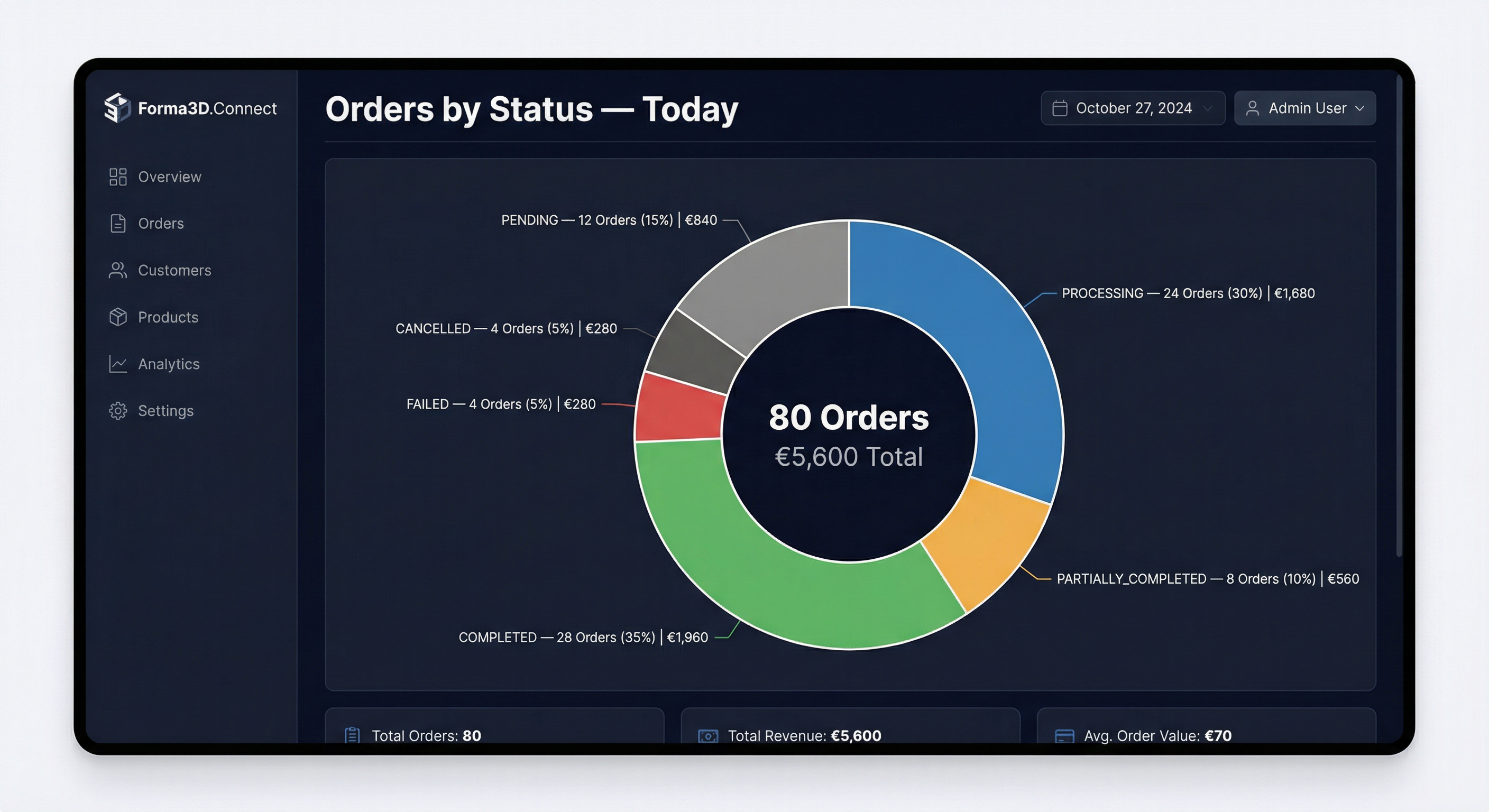

6.2 Orders by Status — Donut Chart¶

Donut chart with leader-line labels showing count, percentage, and EUR amount per status. Center displays total orders and revenue.

Features:

• Time filter tabs: Today | This Week | This Month | All Time
• Center summary: total order count + total EUR
• Leader-line labels: status name, count, percentage, EUR
• Tooltip on hover with detailed breakdown
• Clickable slices to navigate to filtered order list

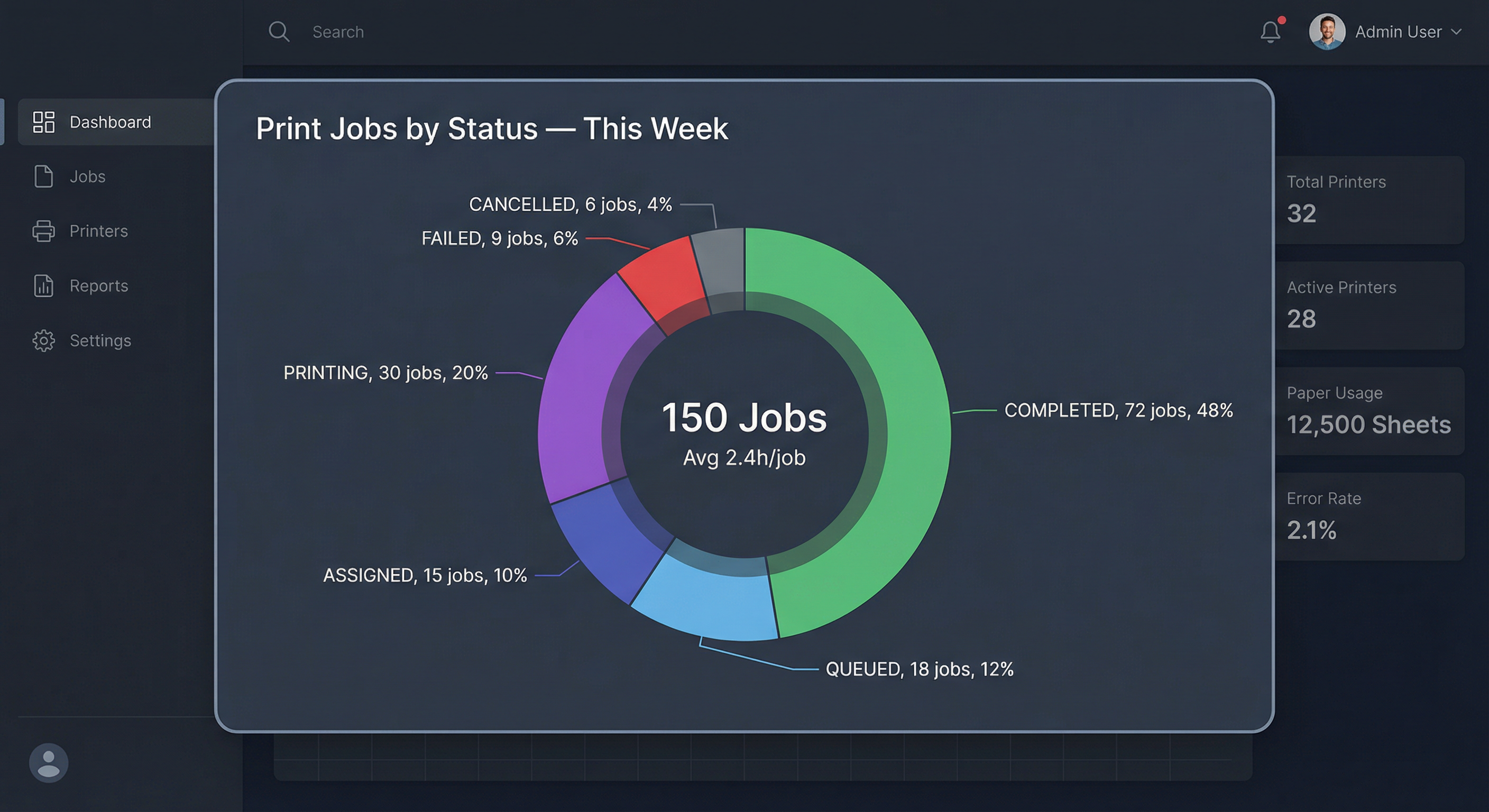

6.3 Print Jobs by Status — Donut Chart¶

Similar donut with print job-specific colors. Center shows total jobs and average duration.

Features:

• Time filter tabs
• Center summary: total jobs + average duration
• Side KPI cards: Total Printers, Active Printers, Error Rate
• Clickable slices for filtered job views

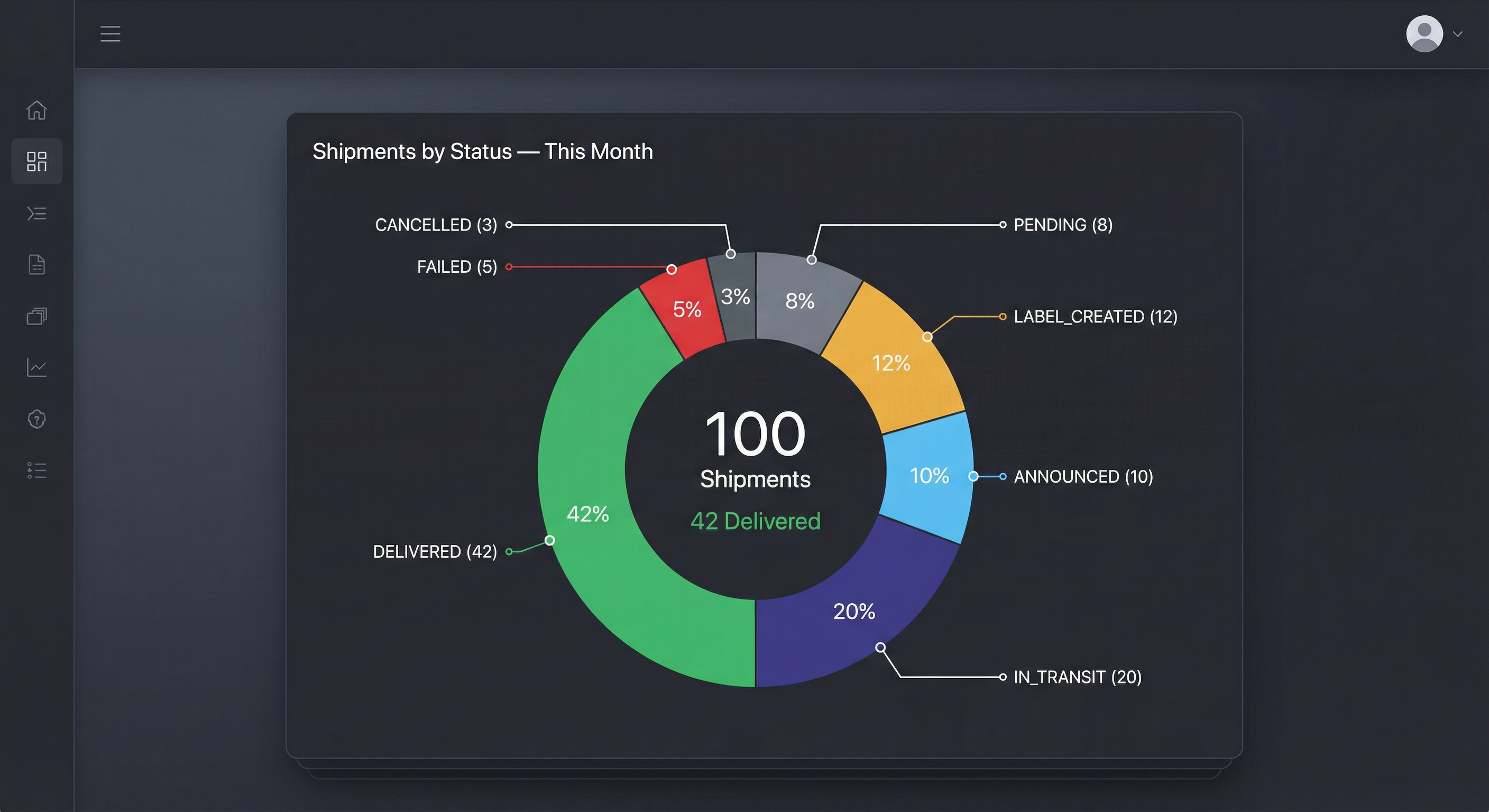

6.4 Shipments by Status — Donut Chart¶

Seven-segment donut reflecting the full shipping lifecycle from pending to delivered.

Features:

• Time filter tabs
• Center summary: total shipments + delivered count
• Color gradient from gray (pending) through blue (in-transit) to green (delivered)
• Visual pipeline feeling — cold-to-warm progression

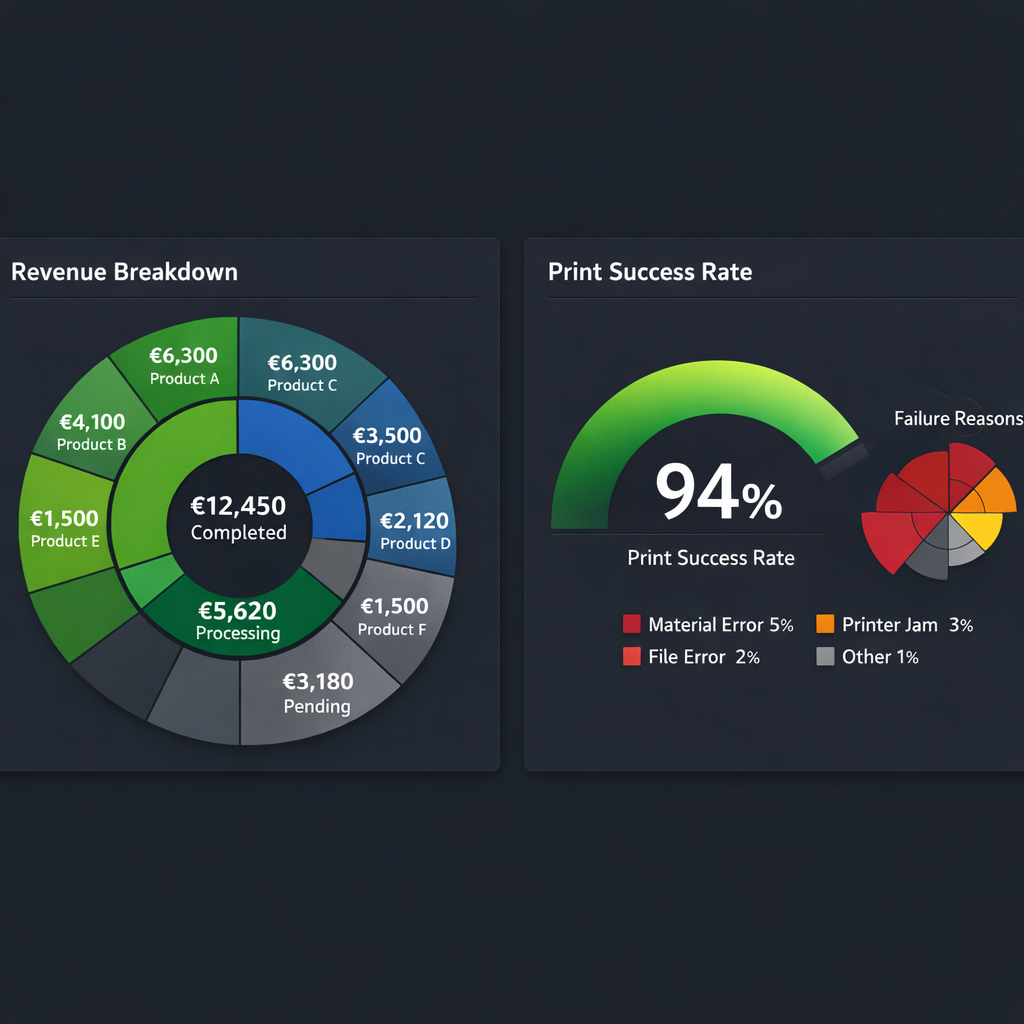

6.5 Advanced Charts — Revenue Breakdown & Print Success Rate¶

Nested sunburst chart for revenue analysis and gauge chart for print success rate:

Revenue Breakdown (left):

• Inner ring: revenue by order status
• Outer ring: revenue by product SKU
• ECharts-exclusive feature (nested pie/sunburst)

Print Success Rate (right):

• Semi-circle gauge: overall success percentage
• Companion rose chart: failure reason breakdown
• Color zones: green (90%+), yellow (75–90%), red (<75%)

7. Implementation Plan¶

Phase 1: Foundation (1–2 days)¶

1. Install dependencies: echarts, echarts-for-react
2. Configure pnpm peer dependency overrides for React 19
3. Create shared chart setup module in libs/ui with on-demand imports
4. Register custom Forma3D dark theme
5. Create reusable <ChartCard> wrapper component with time filter tabs

Phase 2: Core Donut Charts (2–3 days)¶

1. Build <OrderStatusChart> component
2. Build <PrintJobStatusChart> component
3. Build <ShipmentStatusChart> component
4. Create TanStack Query hooks for each: useOrderStatusMetrics(), usePrintJobMetrics(), useShipmentMetrics()
5. Add time-period selector (today/week/month/all) with query parameter support
6. Integrate into dashboard page (Row 2)

Phase 3: Trend & Revenue Charts (2–3 days)¶

1. Build <OrderTrendChart> (line chart)
2. Build <RevenueTrendChart> (bar chart)
3. Build <RevenueBreakdownChart> (nested donut)
4. Create corresponding backend endpoints and query hooks
5. Integrate into dashboard page (Row 3)

Phase 4: Advanced Charts (1–2 days)¶

1. Build <PrintSuccessGauge> component
2. Build <FailureReasonsChart> (rose/nightingale)
3. Add to a dedicated analytics sub-section or expandable panel

Phase 5: Polish (1 day)¶

1. Responsive behavior (stack charts on mobile)
2. Loading states and empty states for each chart
3. Click-to-filter navigation (click a pie slice to go to filtered list)
4. Accessibility: chart descriptions for screen readers
5. Performance testing: verify bundle size impact

Total estimate: 7–11 days

8. Backend API Requirements¶

New endpoints needed in apps/api:

GET /api/v1/analytics/orders¶

// Query params
interface OrderAnalyticsQuery {
  period: 'today' | 'week' | 'month' | 'all';
}

// Response
interface OrderAnalyticsResponse {
  period: string;
  totalOrders: number;
  totalRevenue: number; // EUR
  avgOrderValue: number; // EUR
  statuses: Array<{
    status: OrderStatus;
    count: number;
    percentage: number;
    totalValue: number; // EUR
  }>;
}

GET /api/v1/analytics/print-jobs¶

interface PrintJobAnalyticsResponse {
  period: string;
  totalJobs: number;
  avgDurationSeconds: number;
  successRate: number; // 0–100
  retryRate: number; // 0–100
  statuses: Array<{
    status: PrintJobStatus;
    count: number;
    percentage: number;
  }>;
}

GET /api/v1/analytics/shipments¶

interface ShipmentAnalyticsResponse {
  period: string;
  totalShipments: number;
  deliveryRate: number; // 0–100
  avgDeliveryDays: number;
  statuses: Array<{
    status: ShipmentStatus;
    count: number;
    percentage: number;
  }>;
}

GET /api/v1/analytics/trends¶

interface TrendsQuery {
  metric: 'orders' | 'revenue';
  days: 7 | 30 | 90;
}

interface TrendsResponse {
  metric: string;
  dataPoints: Array<{
    date: string; // ISO date
    value: number;
  }>;
}

GET /api/v1/analytics/revenue-breakdown¶

interface RevenueBreakdownResponse {
  totalRevenue: number;
  byStatus: Array<{
    status: OrderStatus;
    revenue: number;
    products: Array<{
      sku: string;
      name: string;
      revenue: number;
    }>;
  }>;
}

All endpoints are scoped to the authenticated tenant (tenantId from JWT).

9. Risks & Mitigations¶

10. Decision¶

Recommended: Apache ECharts via echarts-for-react¶

Why ECharts over alternatives:

1. Richest pie chart variety — donut, rose, nested, sunburst — all needed for our use cases
2. Professional label formatting — leader lines with multi-line rich text labels showing count + percentage + EUR
3. Built-in dark theme — matches our existing dark-mode admin dashboard
4. Excellent TypeScript support — native type definitions for all chart options
5. Interactive features — click handlers on slices for drill-down navigation to filtered views
6. Single library — covers all chart types (pie, bar, line, gauge, sunburst, funnel) without mixing libraries
7. Active ecosystem — 65K+ GitHub stars, ~1.7M weekly npm downloads, Apache Foundation backing

Trade-offs accepted:

• Larger bundle than Chart.js (~150 KB gz with tree-shaking vs ~11 KB)
• JSON config API style instead of JSX components (acceptable — config objects are easily typed and composable)
• Peer dependency override needed for React 19 (non-blocking)

Packages to Install¶

pnpm add echarts echarts-for-react

Priority Order¶

1. P0 — Orders by Status donut (most valuable — immediate visibility into order pipeline)
2. P0 — Print Jobs by Status donut (core operational metric for print farm management)
3. P1 — Shipments by Status donut (shipping pipeline visibility)
4. P1 — Revenue trend bar chart (business health indicator)
5. P2 — Order volume trend line (growth tracking)
6. P2 — Revenue breakdown sunburst (product-level analysis)
7. P3 — Print success gauge (operational quality metric)
8. P3 — Failure reasons rose chart (root cause analysis)

References¶

• Apache ECharts Official Site
• ECharts Pie Chart Examples
• echarts-for-react GitHub
• ECharts On-Demand Import Guide
• ECharts Dark Theme
